These portable utility 8" and 10" miter band saws cut all types and shapes of materials quickly and effectively. The workpiece remains fixed while the band saw head accurately swivels left or right to cut any angle from 0 to 45 degrees. Miter cuts can be set-up in seconds in either direction. These economical band saws have heavy duty steel construction for added rigidity and vibration free performance. They come complete with adjustable blade guides for accurate workpiece positioning and support, one step conversion of the saw head from a horizontal to a vertical saw, built-in protractor for fast and accurate selection of cutting angles to be cut, large heavy duty rubber wheels with telescoping hangle for easy portability and movement. The feed rate is adjustable and controlled by a hydraulic cylinder. The PMI-10 can be converted to a wet band saw for those applications that require coolant by ordering PMI-10-1C coolant system option.
Standard Features; • Portable design with heavy duty casters • Operates in horizontal or vertical positions • Auto shut off • Rapid acting vise • Band Saw head miters 0 to 45 degrees right or left

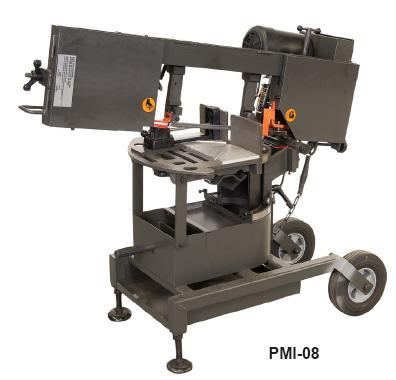

PMI-08 Miter Band Saw

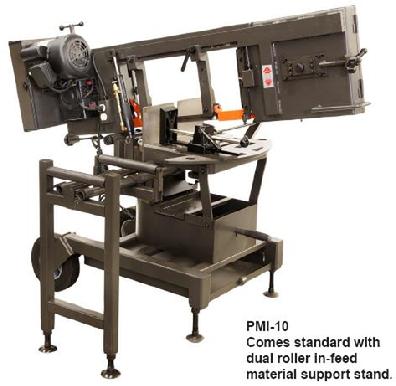

PMI-10 Miter Horizontal Band Saw

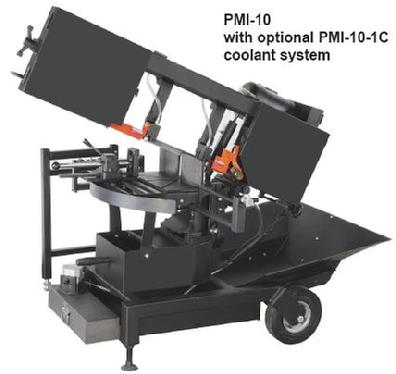

PMI-10-1C Horizontal Saw
Cutting Capacity & Technical Specs.
Model
Motor Voltage
HP
Speeds (FPM)
Round
Rectangle
Square
Miter Capacity (Deg.)
Max. Blade Length (In.)
Max. Blade Width (In.)
Blade Thickness (In.)
H
W
D
PMI-08
115/230
3/4
64,124,221
8"
3" x 7"
8"
0-45
102"
3/4"
.035"
44"
52"
23"
PMI-10
115/230
1
64,124,221
10"
3-1/2" x 9"
10"
0-45
120"
1"
.035"
45"
51"
25"
Horizontal Miter Band Saw 60 Degree Cutting
PMI-13 Horizontal Double Miter Band Saw
The PMI-13 Horizontal miter band saw provides flexibility and value for those applications that require cut off medium to large work pieces or parts that have many angle cuts. The workpiece remains fixed while the band saw head swivels left or right to cut any angle from 0 to 60 degrees fast and easily. Heavy duty cast iron and steel construction provides full blade support while eliminating vibration and deflection. A variable speed drive system enables the operator to fine tune bandsaw blade speed easily to maximize the performance of today's bi-metal bandsaw blades. The 95 to 400 FPM speed range allows the band saw to cut iron, tool steel, bronze, aluminum and other ferrous and non-ferrous metals. This unit comes complete with top load blade for faster and easier set-ups, adjustable blade guide assemblies with 6 contact points using cam follower bearings and carbide pads for straight, accurate cuts. Flood coolant system with chip flushing hose and counter balanced hydraulic feed system to insure smooth, constant feed pressure on the blade.
Standard Features: • Double miter saw head moves 60 degrees to the right and 45 degrees to the left • Adjustable hydraulic feed • Rapid acting vise • Infinite variable speed • Coolant system with flush hose

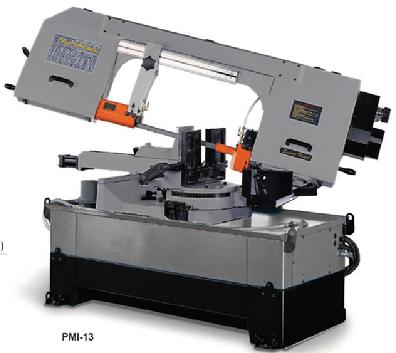

PMI-13 Double Miter Horizontal Band Saw
Cutting Capacity & Technical Specs.
Cutting Capacity
0 Degree
45 Degrees
60 Degrees (right only)
Round
13"
12"
8"
Square
13" x 13"
11" x 11"
8" x 8"
Rectangle
5" x 19"
9" x 12"
7" x 18"
Motor Voltage
HP
Speeds (FPM)
Max. Blade Length
Max. Blade Width
Blade Thickness
H
W
D
230/1PH
2
98 to 393
150"
1"
.035"
51"
87"
48"
PMI Band Saws Information Request Form
