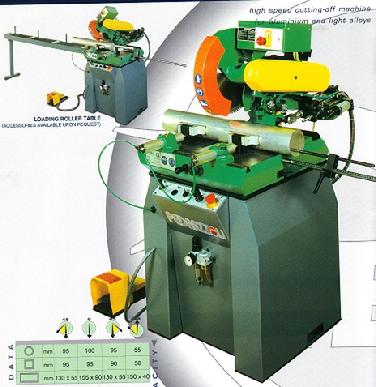

Pedrazzoli Perris 350 AP is synonymous with rapid
cutting-off machines for aluminum and light alloys.
Flexibility of operation and absolute cutting accuracy
makes this machine the most reliable solution
when cutting non-ferrous sections.
Machine comes complete with mechanism for the
rotation of head block for angles cuts up to 45°left,
45°right and 45° off the vertical - Pneumatic cylinder
for head movement, with brake for speed adjustment -
Two speeds of blade rotation obtainable by means of
inversions of the pulleys - Perfectly balanced head,
tilting upon shielded ball bearings - 600mm step feeder
controlled by pneumatic cylinder - Repeater up to
maximum 9 steps to reach a maximum of 5400 mm -
Programmable piece counter - Minimum scrap of final cut -
Feeder speed adjustment valve - Ampmeter - Emergency
push button with key and lockable switch on control panel-
Vaporizer - Complete protection guard with rapid blade
change system
|
